Please Click The Below Quick Links,Find Out Suitable Machine Model. |
||||||
| MT3500 |
|
|||||

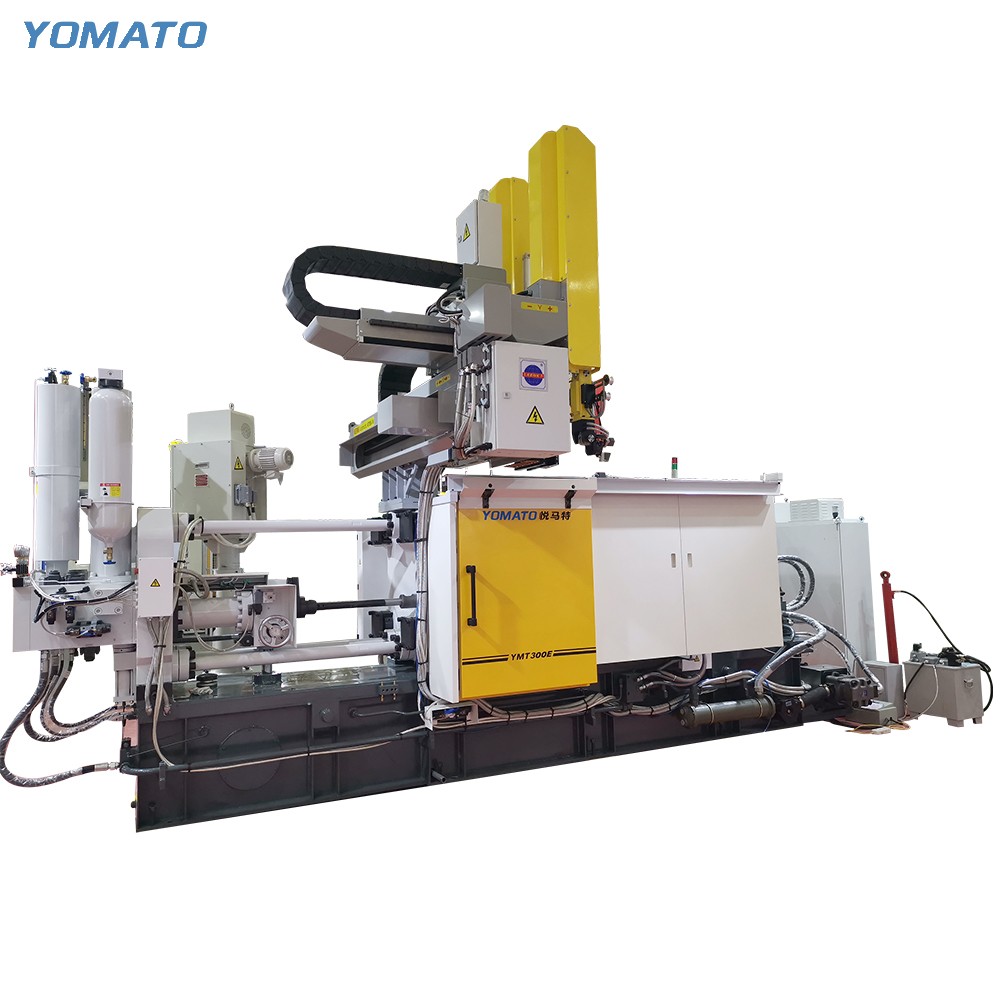

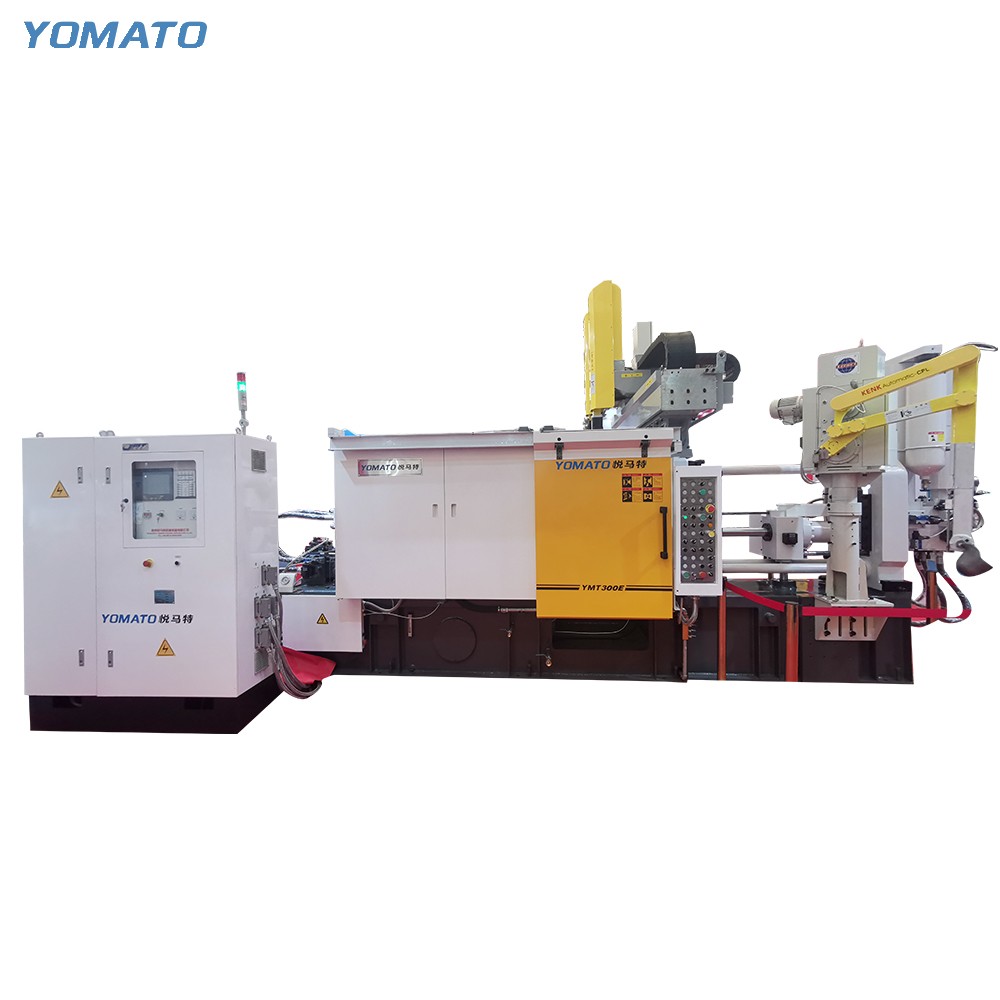

Highlights of MT Series Aluminum Die Casting Machine 300Ton
Higher Performance
Air shot speed ≥ 8m/s, intensification pressure building time ≤ 15ms, slow-fast injection switching time ≤25ms. The machine is suitable for aluminum and magnesium.
Higher Efficiency
The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.
Higher Stability
The key units of the die casting machine, such as the injection system, precisely engineered according to the structural and processes design of famous foreign die casting machines, has high rigidity, high reliability and high durability and is adaptable to adverse operating environment to realize highly stable production.
Features of MT Series Aluminum Die Casting Machine 300Ton
|
Superior Injection System Yomato’s superior non-floating piston injection system has a low malfunction rate,built-in one-way valve control, shorten the pressure build-up time and ensure the good stability. |
|
Central Lubrication System The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine. |
|
Highly Stable Toggle System The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production. |
|
Precise Hydraulic Control System Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available;Original imported high performance, low noise dual vane pump from Japan;Electromagnetic valve,Electrical hydraulic valve. |
|
Stable Electrical Control System The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.
Energy Saving Servo System Yomato die casting machine supply the servo system for machine energy saving as optional. Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL Or customized making under special requirements brands. |
Specification List
Item
Unit
MT300
MT350
MT400
MT450
MT550
Clamping Unit
Clamping Force
KN
3000
3500
4000
4500
5500
Platen Size(HxV)
mm
870x870
960x960
970x960
1010x1010
1150x1150
Space Between Tie Bars（HxV)
mm
570x570
610x610
620x620
660x660
760x760
Tie Bar Diameter
mm
110
120
130
130
140
Mold Height(Min.-Max.)
mm
250-650
250-700
300-700
300-750
320-800
Clamping Stroke
mm
460
500
550
550
580
Ejection Stroke
mm
110
120
120
120
120
Ejection Force
KN
140
160
180
200
220
Injection Unit
Injection Force
KN
320
370
405
420
520
Injection Stroke
mm
420
500
500
520
570
Injection Position
mm
0,-160
0,160
0,-175
0.-200
0.-200
Injection Plunger Diameter
mm
50,60,70
60,70,80
60,70,80
60,70,80
70,80,90
Injection Weight(Al)
KG
1.5,2.1,2.9
2.6,3,6,4,6
2.6,3,6,4.6
2.8,3.6,4.7
3.9,5.1,6.5
Casting Pressure(Intensify.)
MPa
162,113,83
130,96,73
143,105,80
148,109,83
135,103,81
Casting Area
cm2
184,265,360
267,364,475
279,380,496
302,412,538
407,531,672
Max.Casting Area(40MPa)
cm2
750
875
1000
1125
1375
Casting Flange Protrusion
mm
12-0.05
12-0.05
12-0.05
15-0.05
15-0.05
Casting Flange Diameter
mm
110
110
110
130
130
Plunger Penetration
mm
150
195
200
220
230
Others
System Working Pressure
MPa
14
16
14
16
16
Motor Power
KW
18.5
22
22
22
30
Oil Tank Capacity
L
650
700
850
1000
1100
Machine Weight
KG
12000
14800
15000
18000
23500
Machine Dimensions(LxWxH)
m
6.2x1.8x2.7
7x1.9x2.8
6.8x2x28
7x2x2.9
7.8x2.4x3.1
