Please Click The Below Quick Links,Find Out Suitable Machine Model. |
||||||
| MT3500 |
|
|||||

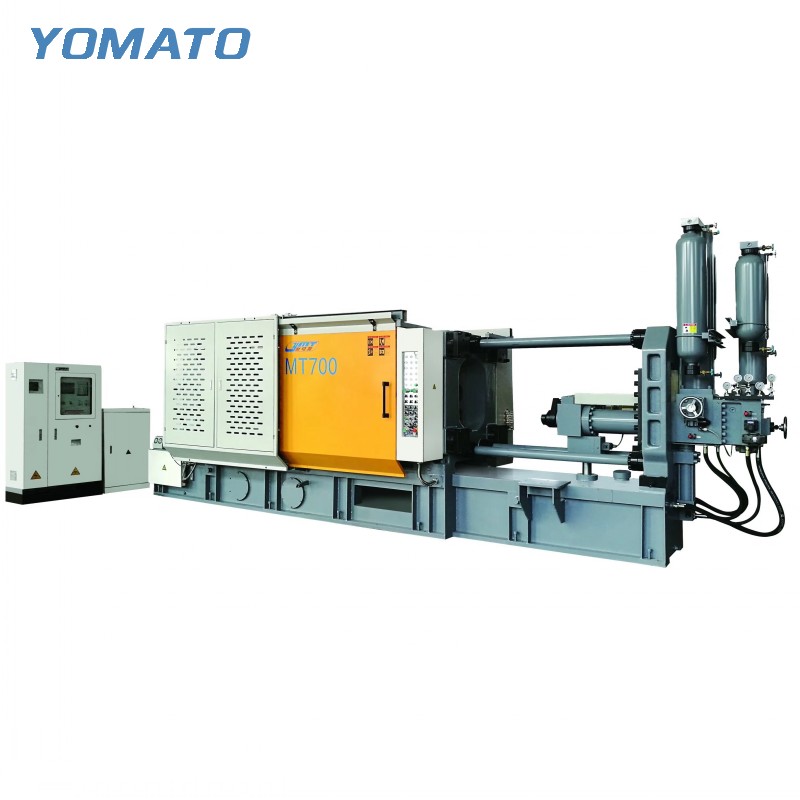

Highlights of MT Series Aluminum Die Casting Machine 700Ton
Higher Performance
Air shot speed ≥ 8m/s, intensification pressure building time ≤ 15ms, slow-fast injection switching time ≤25ms. The machine is suitable for aluminum and magnesium.
Higher Efficiency
The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.
Higher Stability
The key units of the die casting machine, such as the injection system, precisely engineered according to the structural and processes design of famous foreign die casting machines, has high rigidity, high reliability and high durability and is adaptable to adverse operating environment to realize highly stable production.
Features of MT Series Aluminum Die Casting Machine 700Ton
|
Superior Injection System Yomato’s superior non-floating piston injection system has a low malfunction rate,built-in one-way valve control, shorten the pressure build-up time and ensure the good stability. |
|
Central Lubrication System The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine. |
|
Highly Stable Toggle System The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production. |
|
Precise Hydraulic Control System Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available;Original imported high performance, low noise dual vane pump from Japan;Electromagnetic valve,Electrical hydraulic valve. |
|
Stable Electrical Control System The ORMON PLC control system (touch screen) is safe and reliable with high control accuracy. Separate integration of the electrical and electronic systems effectively enhances the stability of the electrical circuit.
Energy Saving Servo System Yomato die casting machine supply the servo system for machine energy saving as optional. Servo motor:Hilectro(China famous brand)+Servo Pump:Sumitomo brand+Servo Driver:MODROL Or customized making under special requirements brands. |
Specification List
Item
Unit
MT700
MT850
MT950
MT1100
MT1300
Clamping Unit
Clamping Force
KN
7000
8500
9500
11000
13000
Platen Size(HxV)
mm
1260x1250
1400x1400
1480x1480
1620x1600
1780x1770
Space Between Tie Bars（HxV)
mm
820x820
925x925
980x980
1050x1050
1100x1100
Tie Bar Diameter
mm
165
185
190
210
230
Mold Height(Min.-Max.)
mm
350-900
400-950
400-950
450-1150
550-1200
Clamping Stroke
mm
650
760
800
900
1000
Ejection Stroke
mm
160
180
180
190
200
Ejection Force
KN
260
360
260
500
570
Injection Unit
Injection Force
KN
620
750
800
900
1100
Injection Stroke
mm
650
750
800
900
950
Injection Position
mm
0,-250
0,-250
0,-250
0,-300
0,-320
Injection Plunger Diameter
mm
80,90,110
80-120
90-130
90-130
100-140
Injection Weight(Al)
KG
6.1,7.8,9.6
7--16
9.1-19
10.3-21.6
13.5-26
Casting Pressure(Intensify.)
MPa
123,97,79
149-66
125-60.3
141-67
140-71
Casting Area
cm2
567,718,886
570-1287
755-1575
777-1622
925-1815
Max.Casting Area(40MPa)
cm2
1750
2125
2375
2750
3250
Casting Flange Protrusion
mm
15-0.05
20-0.05
20-0.05
20-0.05
25-0.05
Casting Flange Diameter
mm
165
180
190
240
240
Plunger Penetration
mm
280
300
350
350
350
Others
System Working Pressure
MPa
16
16
16
16
16
Motor Power
KW
37
37
45
55
74
Oil Tank Capacity
L
1200
1400
1500
1800
2200
Machine Weight
KG
30000
39500
48000
70000
90000
Machine Dimensions(LxWxH)
m
8.2x2.5x3.3
9.4x2.6x3.6
9.6x2.5x3.6
11.2x3.4x4
12.5x3.5x4
