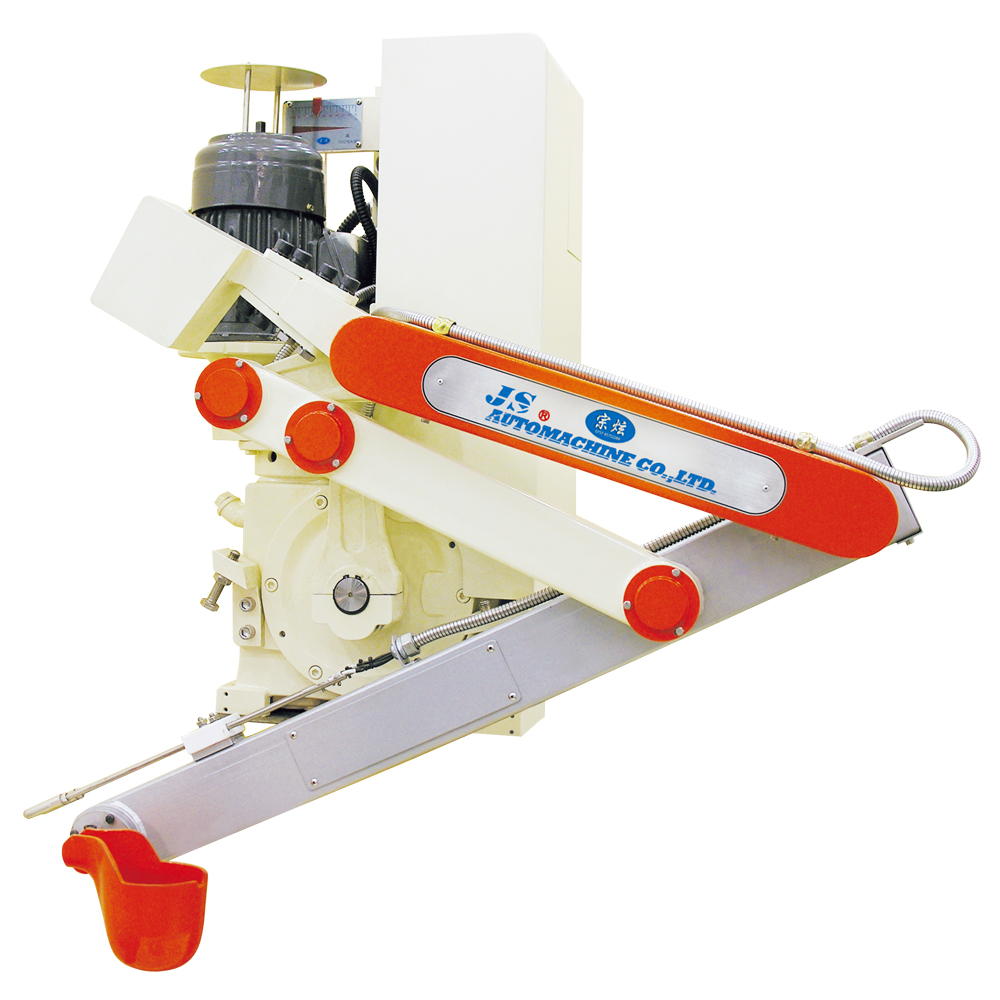

Auto Ladler for 950-1300Ton

Product Description

1.With five linkages, twin gear driven to enhance arm speed and stability, it also increase production output.
2.The case is mono-block; it greatly increases the precision of machine.
3.The ladle arm forward/return and pouring/scooping are controlled separately by inverters, thereby increasing the ladle speed, easy to operate.
4.The linkage model allows the arm to stop smoothly even at high speed. Preventing the molten aluminum from easily spilling.
5.The electrical components are controlled by PLC, using simple touch for setting, with build-in error code display for easier maintenance.
