Product Description

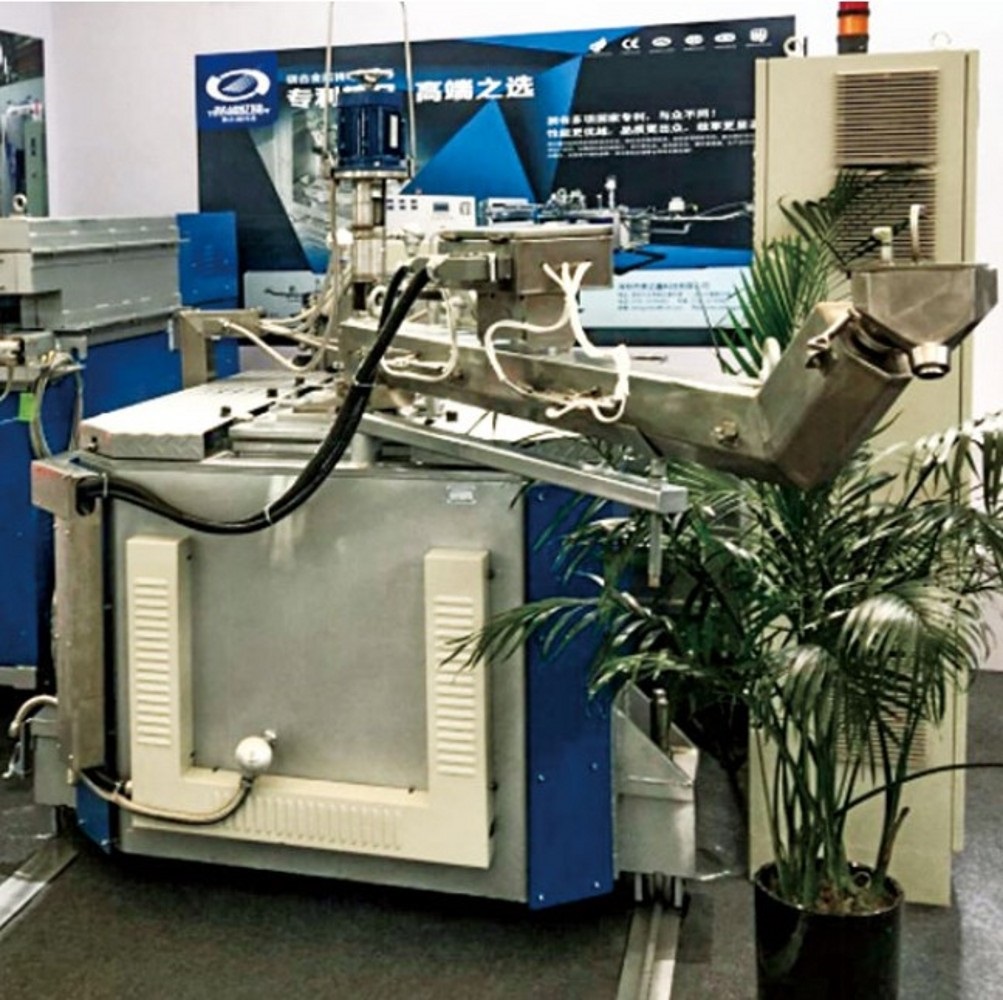

DMD-M Electrical Magnesium Dosing Furnace

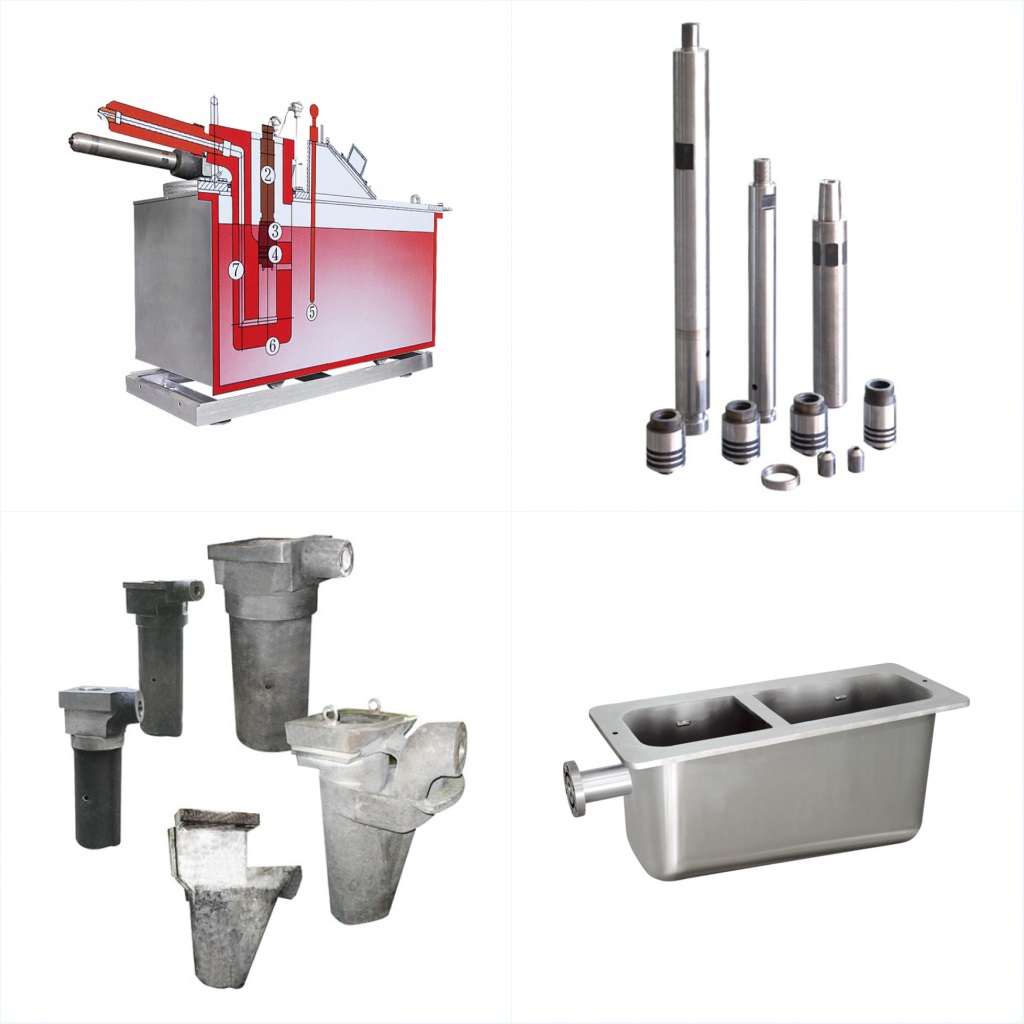

Magnesium Alloy Furnace structure system:
1) The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.
2) Using a radiant tube or other heating method, the heater can be quickly replaced
3) Stainless steel casing and panel, corrosion resistant, high temperature resistant
4) Imported thermocouple, accurate temperature control and high service life
5) Quantitative pump instantaneous flow design, maintenance time of more than 30 days (patent: ZL201220249304.8)
6) The transmission tube is made of special corrosion-resistant materials, which can be quickly changed, and the maintenance time is more than 30 days (patent: ZL201120347014.2)
7) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)
8) Preheating machine has low energy consumption and good preheating effect.
Specification List
| Parameter | Unit | DMD250M | DMD300M | DMD500M | DMD800M | DMD1000M | DMD1200M | DMD1500M |
|
Furnace size(L*W*H) |
Mm | 2000*800* 1000 | 2750*950* 1300 | 3060*950* 1300 | 3400*1000* 1900 | 3650*1450* 2350 | 3650*1450* 2350 | 3650*1450* 2350 |
| Rated Volume Volume | Kg | 250 | 350 | 550 | 800 | 1100 | 1200 | 1500 |
| Melting rate | Kg/h | 80 | 100 | 200 | 250 | 300 | 400 | 450 |
| Crucible structure |
|
Double room | Double room | Double room | Double room | Double room | Double room | Double room |
| Power | V/Hz/Phase | 380-420V/50-60Hz/Three-phase Five-wire | ||||||
| Rated power | KW | 60 | 75 | 120 | 180 | 220 | 260 | 300 |
| Rated current | A | 90 | 120 | 180 | 270 | 330 | 390 | 450 |
| Highest Furnace working temperature | ºC | 850 | ||||||
| Highest work temperature of magnesium liquid | ºC | 710 | ||||||
| provide gas temperature | ºC | 350 | ||||||
| Transportation temperature | ºC | 680-720 | ||||||
| quantitative way |
|
Centrifugal | ||||||
| Quantitative range | Kg | 0.2~5 | 0.2~5 | 0.2~5 | 0.5~10 | 0.5~10 | 0.5~20 | 0.5~20 |
| (max.)Protection gas flow(max.) | L/min | 25 | 25 | 25 | 25 | 50 | 50 | 50 |
| Lifting height of lifting frame | mm | 150 | 150 | 150 | 150 | 150 | 250 | 250 |
| Lift moving distance | mm | 300 | 300 | 300 | 300 | 300 | 500 | 500 |
| PIPE of rotation of lifting frame | ° |
±60 |
||||||
| DIN45635-01-K1.2 noise | dB(A) | <85 | ||||||
| Preheater power | KW | 20 | 20 | 20 | 30 | 30 | 60 | 60 |
| Furnace weight | Kg | 1200 | 1500 | 2400 | 3000 | 4000 | 4500 | 5500 |
| Suitable for die casting machine model | T | ≤300 | ≤400 | ≤650 | ≤900 | ≤1250 | ≤1250 | ≤1650 |
