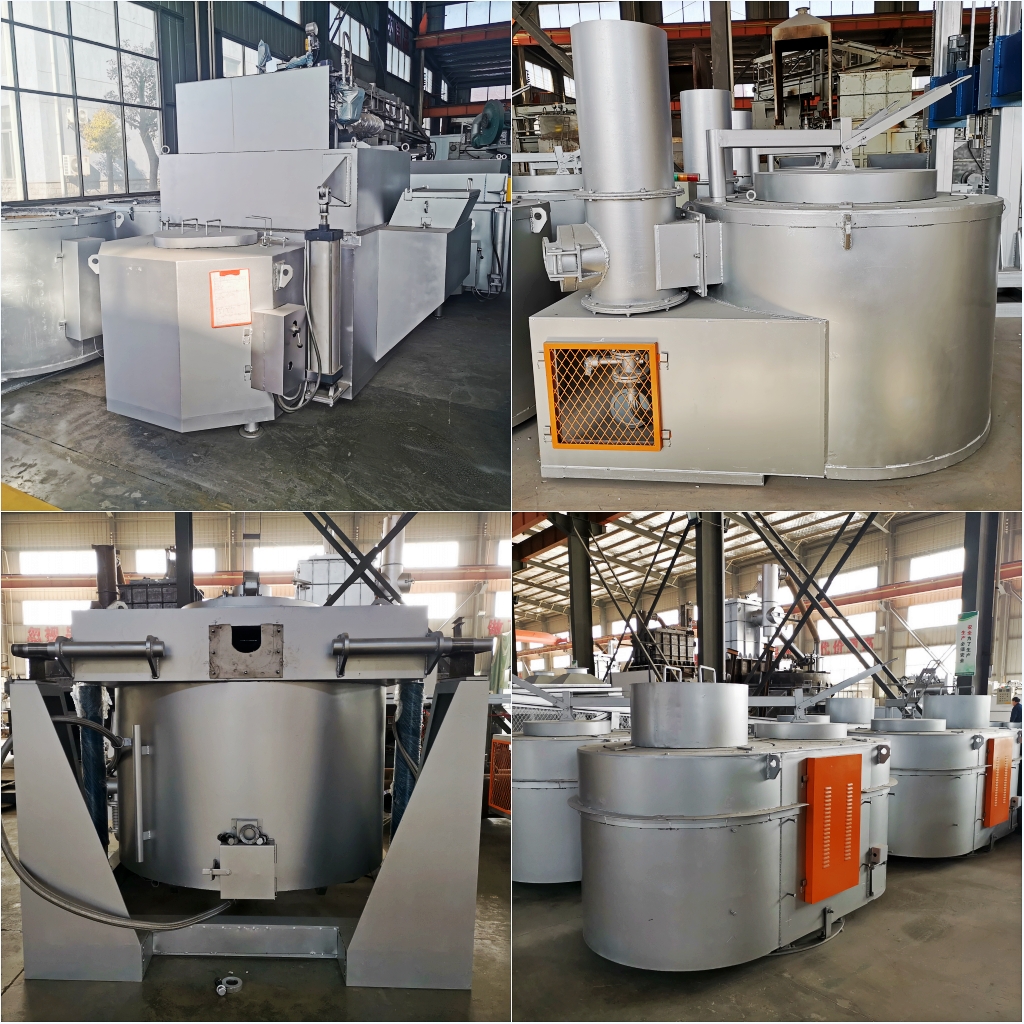

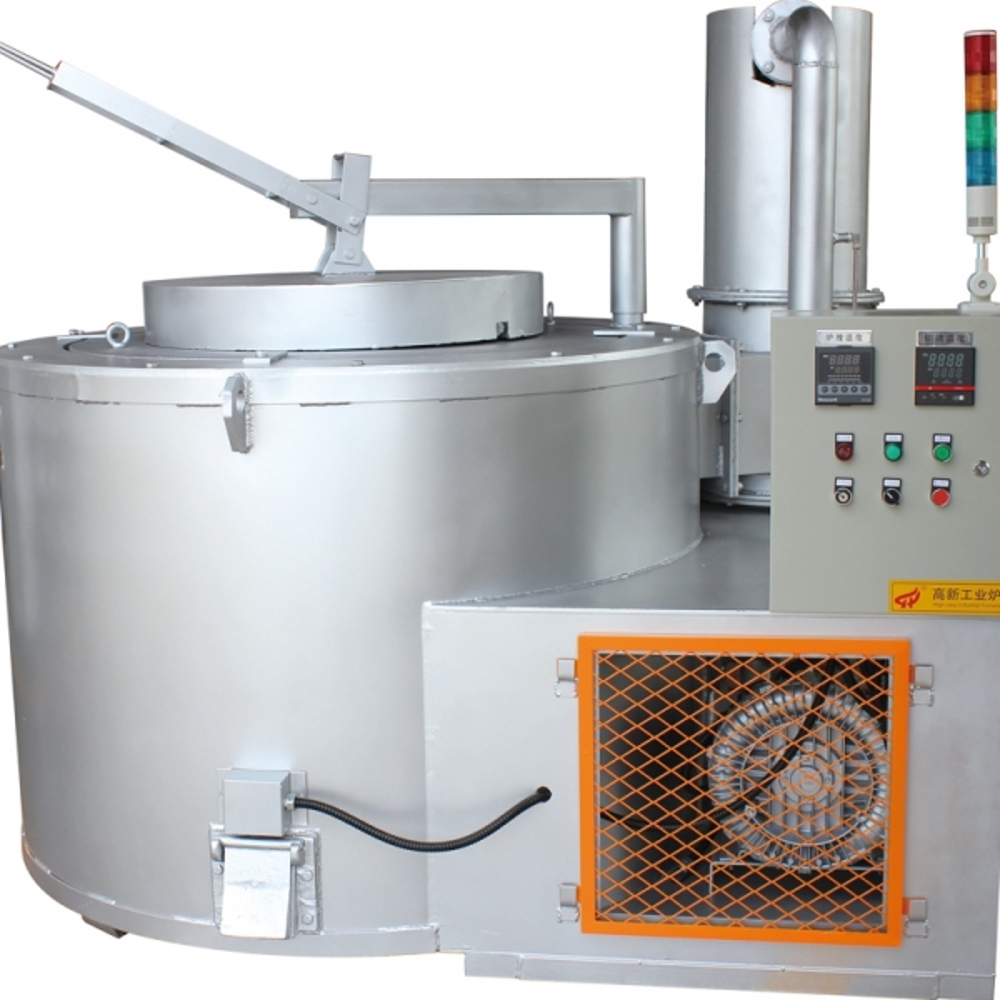

Gas Crucible Melting Furnace With Recovery System 600kg

Product Description

Gas Crucible Melting Furnace

1.Furnace lining is composed of high aluminum lightweight brick and refractory fiber, which has the characteristics of good heat preservation, small heat storage and fast heating speed, and the temperature rise of furnace wall is less than 35°C;

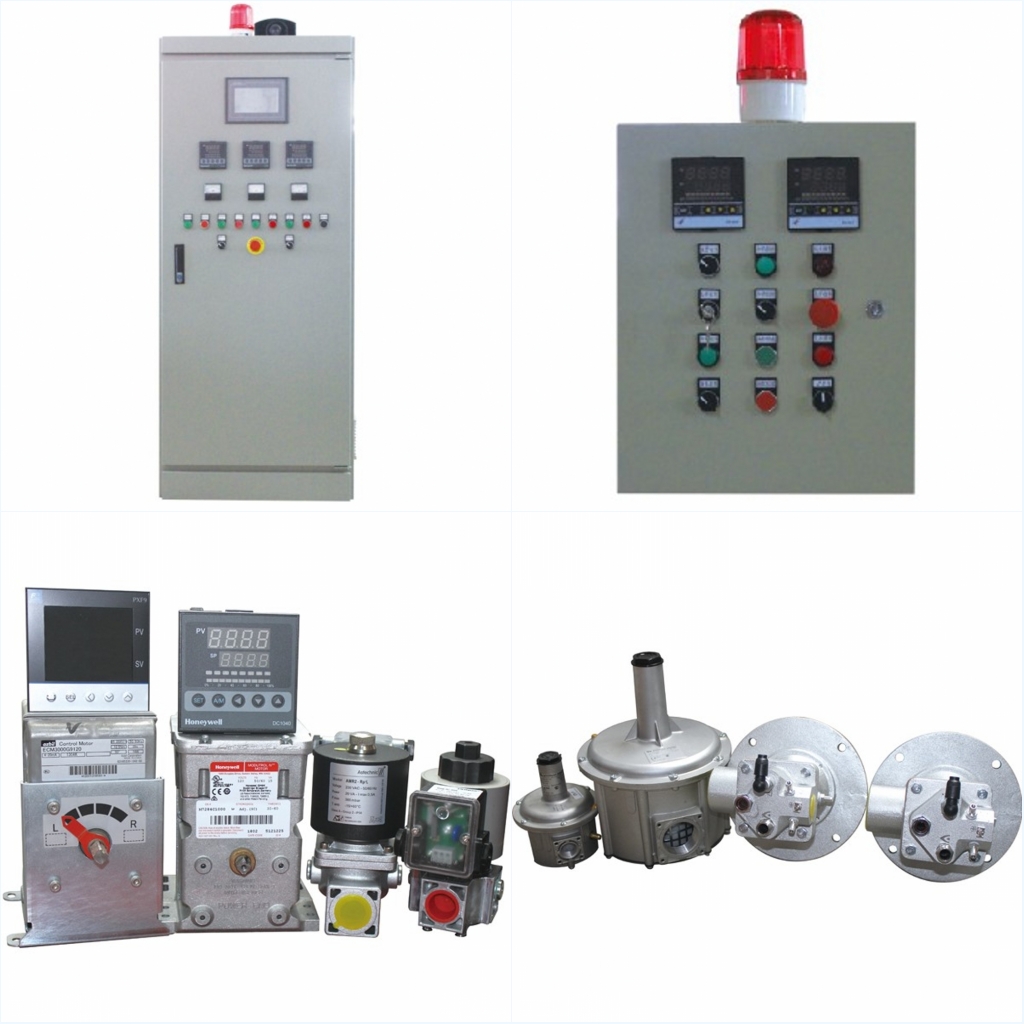

2.Adopts inlet temperature control instrument, PID control, furnace temperature stability control at ±5°C;

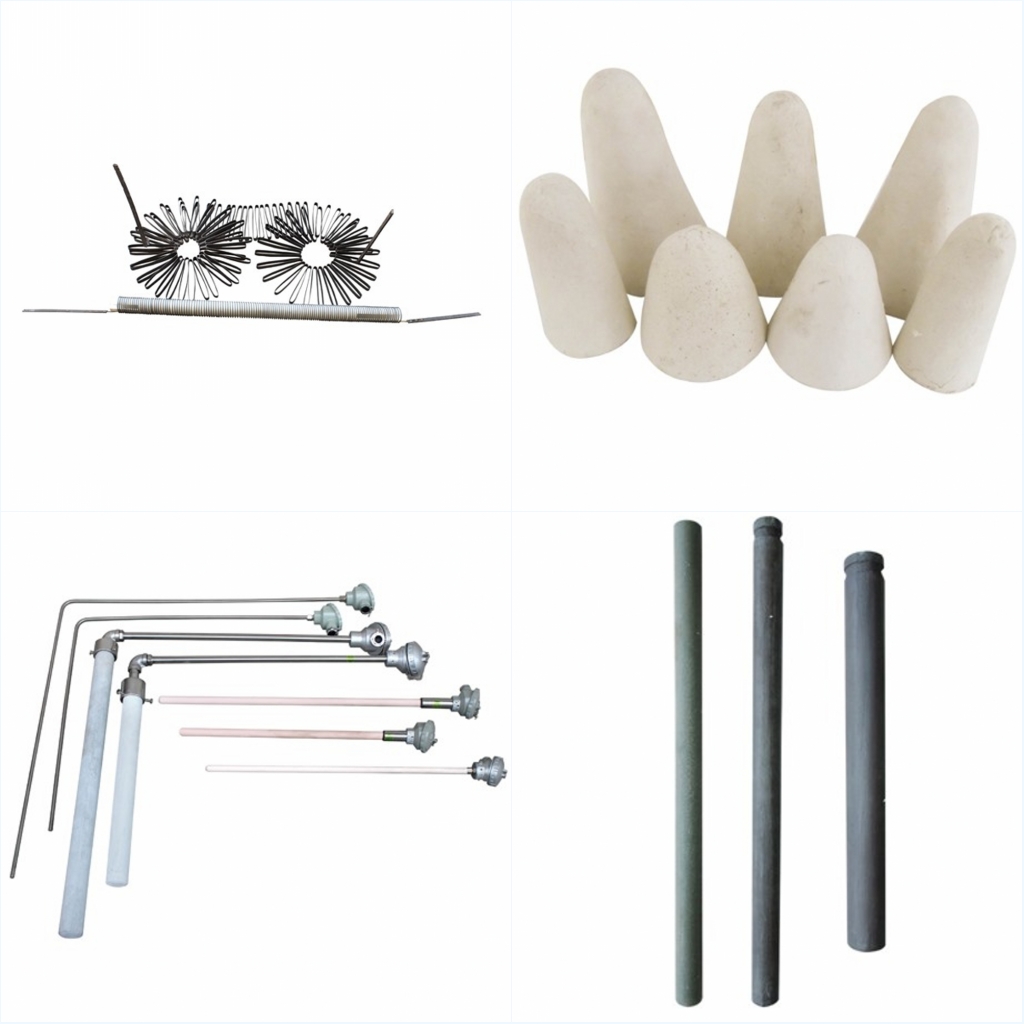

3.Equipped with a non-metallic thermocouple protection tube, direct measurement of aluminum temperature, double temperature control, conducive to the correct implementation of the process;
4.Selected imported graphite crucible, good thermal conductivity, long service life, no iron proliferation;
5.Control system is also equipped with leakage alarm, over temperature alarm and other functions to ensure the safety of equipment and operation;
6.Adopts the international famous brand split burner, the performance is stable, the automation degree is high, the maintenance is convenient;
7.Adopts the heat exchange device, the flue gas waste heat heating fuel air, enhances the waste heat recovery utilization ratio to the maximum extent.
Specification List
