Gas Magnesium Dosing Furnace 1000kg/h

High Preformance
Energy Saving
High Safety
Higher Stability

INQUIRY EMAIL

Product Description

DMQ-M Gas Magnesium Dosing Furnace

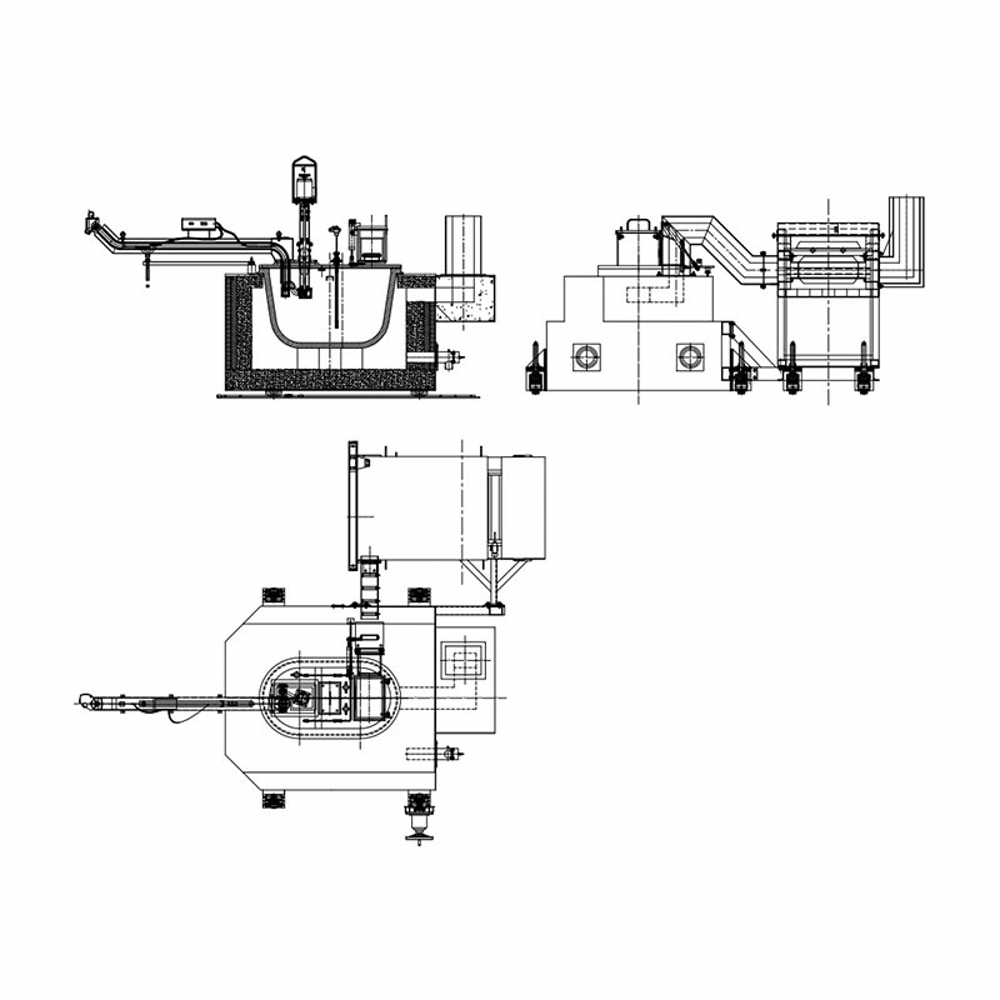

Magnesium alloy gas furnace structural system:

The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.
Using natural gas and other heating methods, automatic flame detection, automatic power adjustment, gas automatic gas shutoff protection.
The automatic thermal cycle control of the burner improves the gas utilization rate, and the natural gas usage is controlled within 80M3/T.
Stainless steel casing and panel, corrosion resistant, high temperature resistant
Imported thermocouple, accurate temperature control and high service life

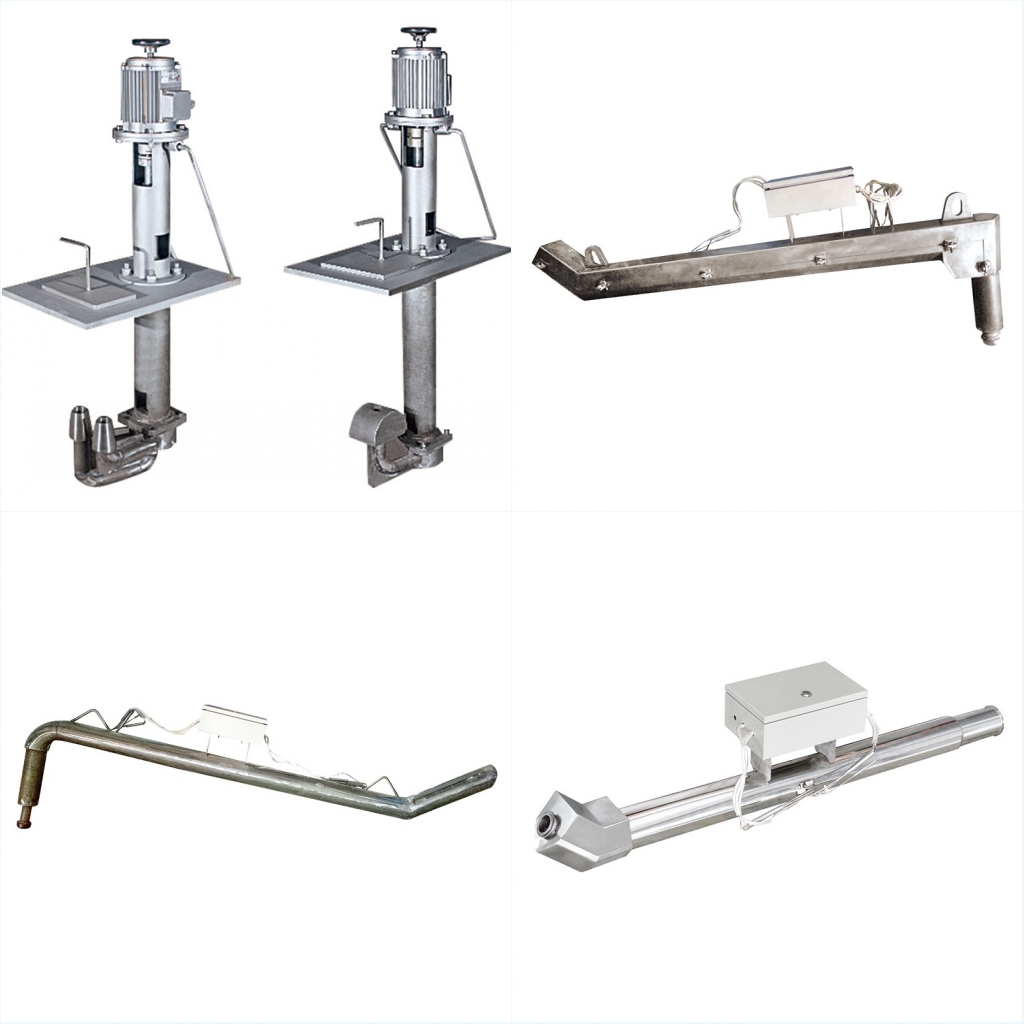

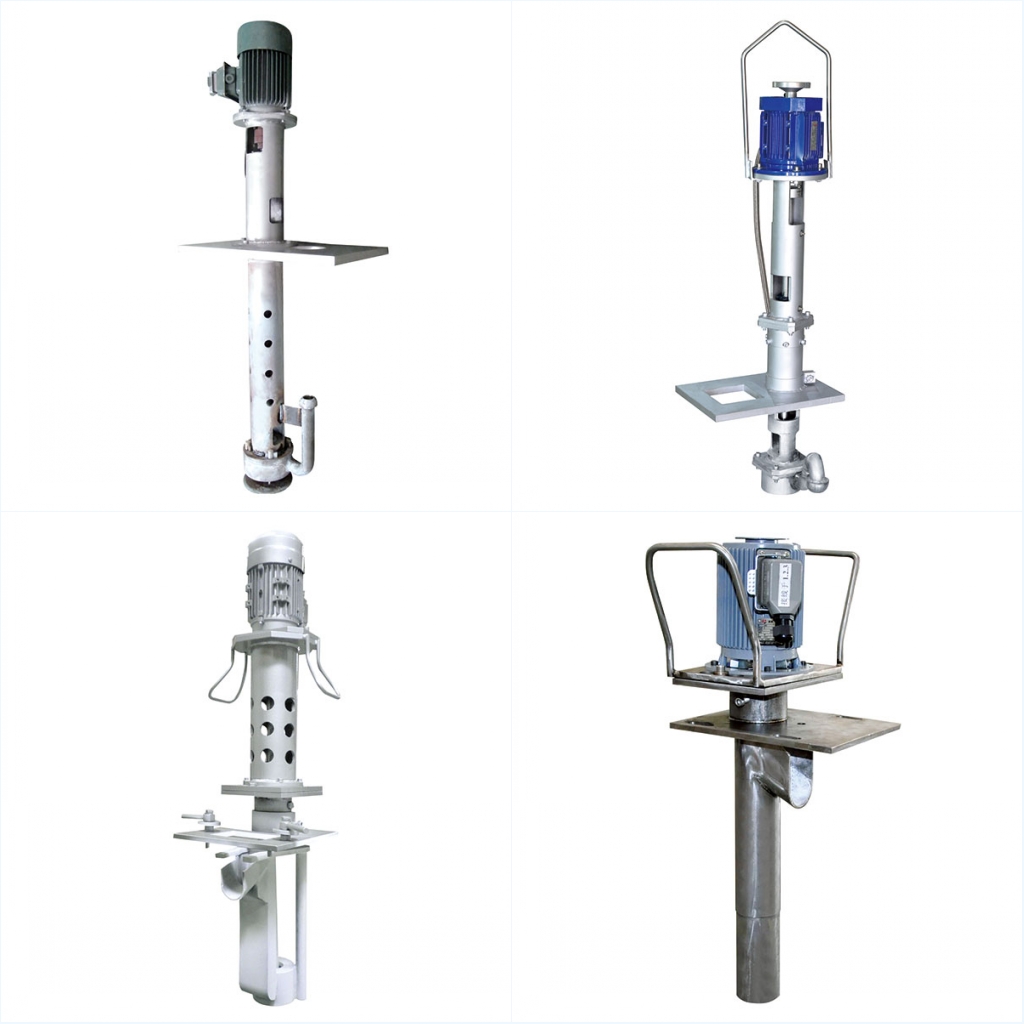

Quantitative pump instantaneous flow design, maintenance time of more than 30 days
The transmission tube is made of special corrosion-resistant materials, which can be quickly changed, and the maintenance time is more than 30 days.

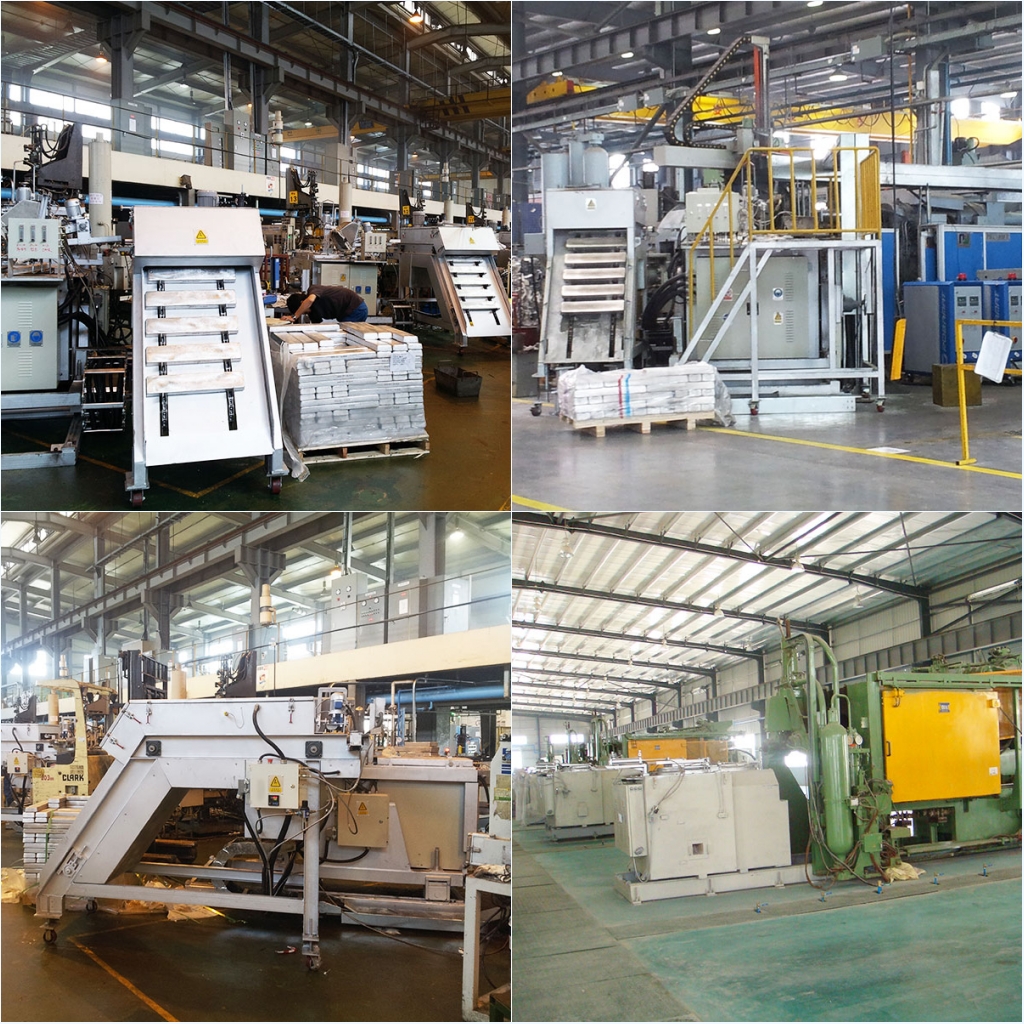

Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding
Preheating machine uses residual heat for reuse, and the preheating effect is good.

Characteristic:

Insulation furnace over-temperature, leaking furnace automatic alarm.
Protection alarm is low, and the protection air flow is low.
Automatic flame detection, automatic power regulation, gas automatic shut-off protection.
Automatic heat cycle control of the burner, improve gas utilization and save energy.
The preheater uses the furnace flue gas to preheat the magnesium ingot without heating the heating element.
Alarm and fault information can be traced back.
Power supply voltage, operating current LED display.
Working status I/O output signal is automatically displayed.
Furnace parameter input authorization password control.
The backup protection gas is automatically switched.
Peripheral device PLC output can be expanded.
The status indicator on the control panel of the key work status.
Real-time temperature curve visually tracks temperature changes.
Temperature data can be exported and process data can be analyzed and saved.
The inductive detection function of the bismuth magnesium liquid outlet prevents the empty hammer from being discharged when the pouring pipe is blocked.
The quantity and quantity of strontium magnesium ingots are automatically recorded and inquired.

Specification List

NO	Item	Unit	DMQ- 300M	DMQ- 600M	DMQ-1000M	DMQ-1500M	DMQ-2000M	DMQ -2500 M	DMQ- 3000 M	DMQ- 3500 M
01	Furnace external dimensions	mm	20001550 1800	25002050 2250	34302260 2360	39002300 2800	45002300 3000	46002800 3200	48003200 3500	49503400 3800
02	Rated Volume	Kg	350	600	1100	1500	2000	2500	3000	3500
03	Melting rate	Kg/h	150	250	350	500	600	800	1000	1200
04	Crucible structure		Double room	Double room	Double room	Double room	three room	three room	three room	three room
05	Power	V/Hz/Phase	380-420V/50-60Hz/Three-phase Five-wire
06	Number of burning machines	PCS	2	2	2	2	4	4	4	4
07	Power	Kw	230	230	260	260	300	360	420	420
08	Crucible thickness	mm	24	24	30	30	30	30	36	36
09	(max.)Furnace working temperature(max.)	ºC	900
10	(max.)Magnesium liquid temperature(max.)	ºC	710
11	provide gas temperature	ºC	350
12	Transportation temperature	ºC	680-720
13	quantitative way		Centrifugal
14	Main gas type		SF6/R134a+ N2/Ar
15	(max.)Mix gas flow(max.)	L/min	10	25	50	50	50	50	50	50
16	Quantitative range	Kg/s	0.2~5	0.2~5	0.5~10	0.5~10	0.5~50	1~50	1~50	1~50
17	Pouring precision	%	±3	±3	±3	±3	±3	±3	±3	±3
18	Lifting height of lifting frame	mm	150	150	150	150	250	250	250	250
19	Lift moving distance	mm	700	700	700	800	800	800	800	800
20	DIN45635-01-K1.2 noise	dB(A)	<85
21	(max.)Preheating machine power	KW	20	30	30	30	60	60	90	90
22	Preheating temperature	ºC	150-250
23	Furnace weight	Kg	1800	2500	3600	5000	6000	7500	8800	9800
24	Suitable for die casting machine model	T	≤500	≤800	≤1650	≤2000	≤2000	≤3500	≤4000	≤4500

Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
